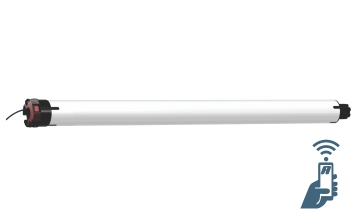

Perfect for all but the very largest (triple interlinked) internal blinds. Recommended for skin and bar weight up to 12kg on 45mm tube. Supplied ready to slide into Acmeda 43 – 49mm tube and also Blindware 45mm tube. Other crowns and drives to suit different tube are available on request for a small charge.
- 35mm diameter
- Power specifications – 120V / 60Hz
- 7 year replacement warranty
- Electronic limit switch
- Built in remote receiver
- Wireless limit set up
- External antenna
| 120V/60Hz | Type 6/34 |
|---|---|
| Rated Torque (N.m) | 6 |
| Output Speed (rpm) | 34 |
| Nominal Consumption (W) | 103 |
| Nominal Voltage (V) | 120 |
| Nominal Current (A) | 0.88 |
| Running Time (Mins) | 4 |
| Protection Index (IP) | 44 |
| Total Length (in) | 23.63 |
| Maximum Turns | infinity |
| Net Weight (lb) | 3 |
